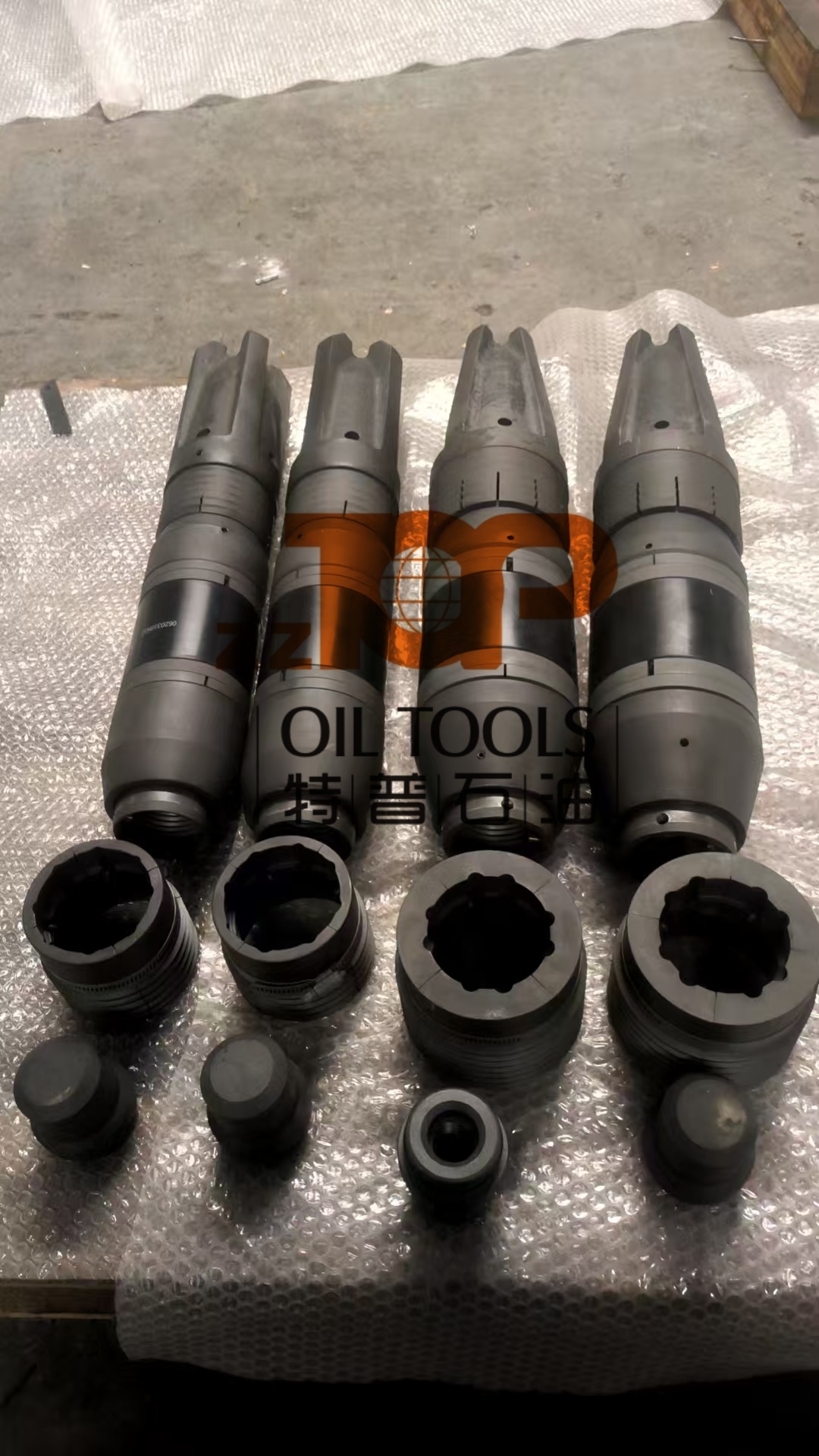

Drillable Cement Retainer With Mechanical Setting For Well Completion

Количество мин заказа :	1 комплект	Цена :	USD 1-10000/set
Упаковывая детали :	Полливуд	Время доставки :	30-50 дней
Условия оплаты :	Л/К, Т/Т, Д/П	Поставка способности :	10 комплектов/месяц

Место происхождения:	Китай	Фирменное наименование:	ZZ TOP OIL TOOLS
Сертификация:	ISO, API	Номер модели:	Цементный фиксатор К1

Подробная информация
Диапазон размеров:	4 1/2" - 13 5/8"	Рабочее давление:	10000 фунтов на квадратный дюйм
Тип подключения:	ИФ, ЕСЕ, КАС	Рабочая температура:	до 400oF
Максимальное давление:	10000 фунтов на квадратный дюйм	Материал:	Чугун

Характер продукции

Drillable Cement Retainer With Mechanical Setting For Well Completion

The “K-1” Cement retainer is a high performance drillable cement Retainer ideal for most remedial cementing applications. The “K-1” was Designed to function as a drillable squeeze packer, after cementing, acts as a plug trapping squeeze pressure on the cement below the retainer and isolating the newly cemented area from the hydrostatic pressures above the cement retainer.

Features and Benefits:

The cement retainer will be set securely in any hardness casing, including premium grades
The cement retainer consist of one-piece packing element and flat metal backup rings which combine for superior seal
This kind of cement retainer can be simply converted to wire line set cement retainer
The cement retainer easy to drill out since metal parts made from cast iron;

Specification of Drillable Cement Retainer

	Casing OD (in)	Casing Weight (lbs/ft)	Setting Range Min (in)	Setting Range Max (in)	Max OD (in)	Max Pressure Rating(PSI)
1	4.500	9.5-16.9	3.740	4.090	3.593	10,000
2	5.000	11.5-21.4	4.126	4.560	3.937
3	5.000	23.2-24.1	3.895	4.142	3.706
4	5.500	13-23	4.580	5.044	4.312
5	6.000	18-26	5.140	5.552	4.937
6	6.625	17-32	5.595	6.135	5.370
7	7.000	17-35	6.004	6.538	5.687
8	7.625	20-39	6.625	7.125	6.312
9	8.625	24-49	7.511	8.097	7.125
10	9.625	29.3-58.4	8.435	9.063	8.120	8,000
11	10.750	32.76-60.7	9.660	10.192	9.438	8,000
12	11.750	60-94	10.142	10.772	9.940	4,000
13	11.750	38-66.7	10.656	11.150	10.438	4,000
14	13.375	48-85	12.159	12.715	11.880	3,000
15	16.000	65-118	14.570	15.250	14.125	3,000
